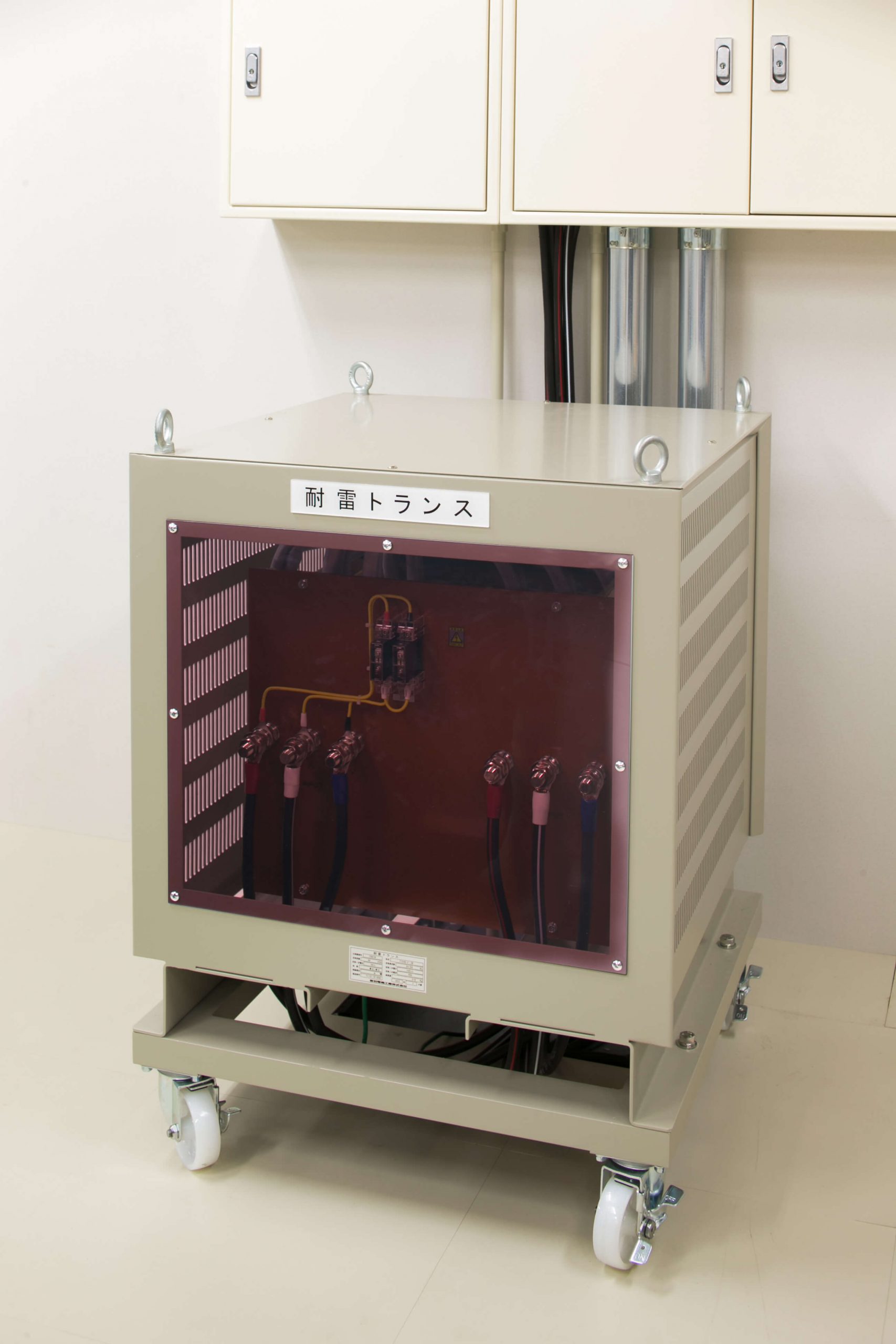

TT series
TT
Item | Conditions | Performances | |
---|---|---|---|
Single-phase 2-wire, Single-phase 3-wire |
Three-phase 3-wire | ||
Regulation | 0.5kVA | Less than 6% | - |
1~2kVA | Less than 5% | - | |
3kVA | Less than 4% | Less than 5% | |
5kVA | Less than 3% | Less than 4% | |
More than 7.5kVA | Less than 3% | Less than 3% | |
Efficiency | 0.5kVA | More than 90% | - |
1~2kVA | More than 92% | - | |
3kVA | More than 94% | More than 94% | |
More than 5kVA | More than 95% | More than 95% | |
Insulation resistance test | Primary to Secondary (DC 500V meter) | More than 100MΩ | |
Withstand voltage | Primary to Secondary | AC10kV(1 minute) Power frequency withstand voltage Impulse withstand voltage30kV(1.2/50μs) |
|
Primary to Earth | |||
econdary to Earth | AC3kV(1 minute) | ||
Temperature rise | Resistance method | not exceeding 120deg | |
Surge-Attenuation | Common mode | Line to earth less than 1/100 (-40dB) |
|
Class of insulation | - | H | |
Transformer Type | - | Dry type natural air cooled | |
Operating conditions | Frequency | 0Hz or 60 Hz | |
Ambient temperature | -20℃~+40℃ | ||
Humidity | Not exceeding 90% | ||
Altitude | Not exceeding 1,000m | ||
Place of use | Indoor-use |
Phase | Item | Specifications |
---|---|---|
Single-phase 2-wire | Primary Voltage | AC 100V※ |
Secondary Voltage | AC 100V※ | |
Rated Capacity | 0.5~20kVA | |
Single-phase 3-wire | Primary Voltage | 100V×2※ |
Secondary Voltage | 100V×2※ | |
Rated Capacity | 3~50kVA | |
Three-phase 3-wire | Primary Voltage | 200V※ |
Secondary Voltage | 200V※ | |
Rated Capacity | 3~50kVA |
※The voltage can be 110, 115, 220, 240, 420, 440V.

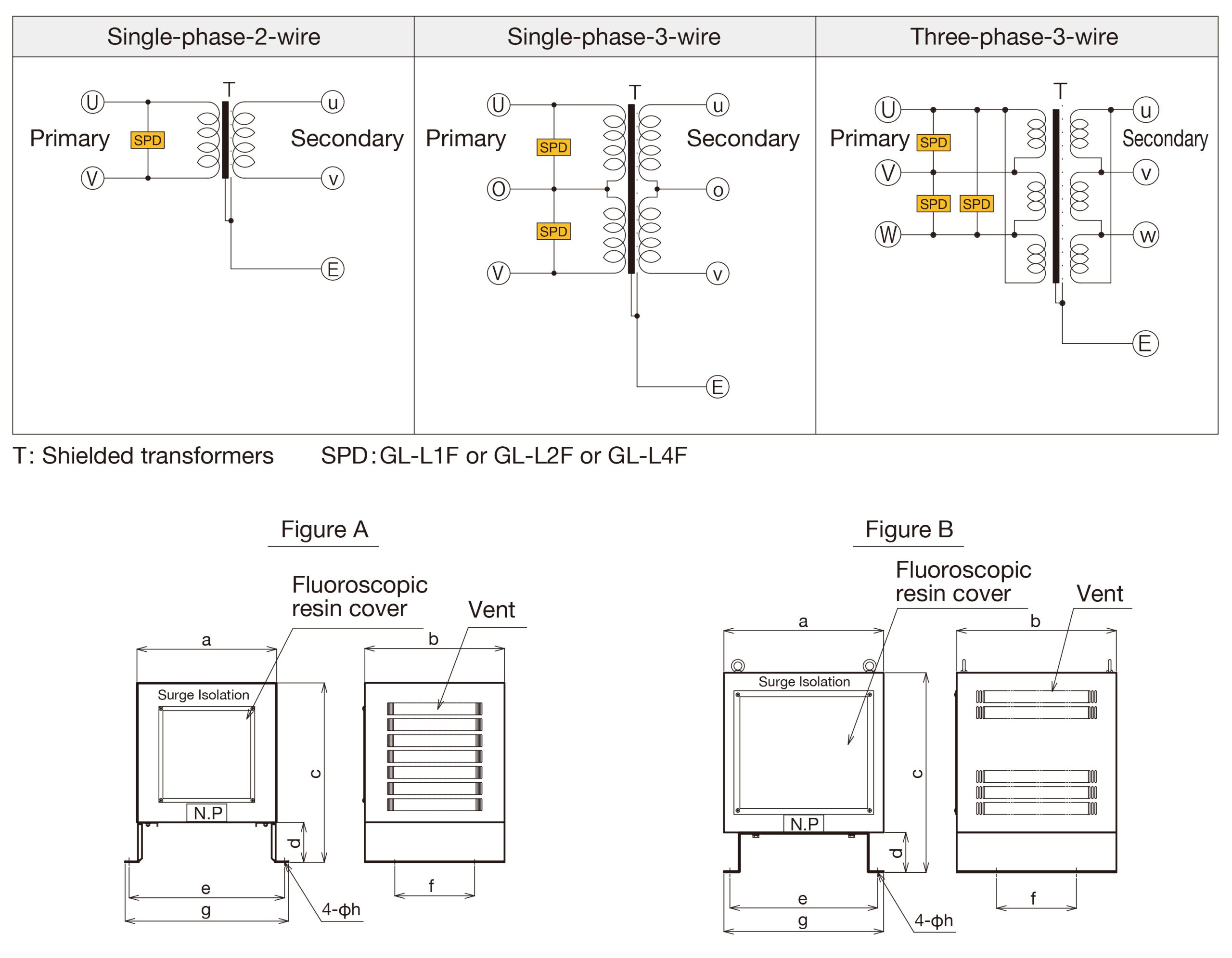

Phase | Type | Capacity | Dimensions (mm) | Approximate weight |
Figure | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
a | b | c | d | e | f | g | h | |||||
Single-phase 2-wire |
TT1 0.5-□・□ | 0.5kVA | 300 | 350 | 400 | 100 | 340 | 200 | 370 | 11 | 25kg | A |
TT1 1-□・□ | 1kVA | 300 | 350 | 400 | 100 | 340 | 200 | 370 | 11 | 30kg | A | |
TT1 2-□・□ | 2kVA | 300 | 350 | 400 | 100 | 340 | 200 | 370 | 11 | 35kg | A | |
TT1 3-□・□ | 3kVA | 300 | 350 | 400 | 100 | 340 | 200 | 370 | 11 | 50kg | A | |
TT1 5-□・□ | 5kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 65kg | B | |
TT1 7.5-□・□ | 7.5kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 85kg | B | |
TT1 10-□・□ | 10kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 100kg | B | |
TT1 15-□・□ | 15kVA | 500 | 500 | 550 | 100 | 470 | 250 | 500 | 13 | 125kg | B | |
TT1 20-□・□ | 20kVA | 500 | 500 | 550 | 100 | 470 | 250 | 500 | 13 | 150kg | B | |
TT1 30-□・□ | 30kVA | 600 | 600 | 650 | 100 | 570 | 300 | 600 | 13 | 210kg | B | |
Single-phase 3-wire |
TT2 3-□・□ | 3kVA | 300 | 350 | 400 | 100 | 340 | 200 | 370 | 11 | 50kg | A |
TT2 5-□・□ | 5kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 65kg | B | |
TT2 7.5-□・□ | 7.5kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 90kg | B | |
TT2 10-□・□ | 10kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 100kg | B | |
TT2 15-□・□ | 15kVA | 500 | 500 | 550 | 100 | 470 | 250 | 500 | 13 | 125kg | B | |
TT2 20-□・□ | 20kVA | 500 | 500 | 550 | 100 | 470 | 250 | 500 | 13 | 150kg | B | |
TT2 30-□・□ | 30kVA | 600 | 600 | 650 | 100 | 570 | 300 | 600 | 13 | 210kg | B | |
TT2 35-□・□ | 35kVA | 600 | 600 | 650 | 100 | 570 | 300 | 600 | 13 | 215kg | B | |
TT2 50-□・□ | 50kVA | 700 | 700 | 750 | 100 | 660 | 300 | 700 | 17 | 310kg | B | |
Three-phase 3-wire |
TT3 3-□・□ | 3kVA | 300 | 350 | 400 | 100 | 340 | 200 | 370 | 11 | 50kg | A |
TT3 5-□・□ | 5kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 70kg | B | |
TT3 7.5-□・□ | 7.5kVA | 400 | 400 | 500 | 100 | 370 | 200 | 400 | 11 | 90kg | B | |
TT3 10-□・□ | 10kVA | 500 | 500 | 550 | 100 | 470 | 250 | 500 | 13 | 115kg | B | |
TT3 15-□・□ | 15kVA | 500 | 500 | 550 | 100 | 470 | 250 | 500 | 13 | 130kg | B | |
TT3 20-□・□ | 20kVA | 500 | 500 | 550 | 100 | 470 | 250 | 500 | 13 | 150kg | B | |
TT3 30-□・□ | 30kVA | 600 | 600 | 650 | 100 | 570 | 300 | 600 | 13 | 190kg | B | |
TT3 50-□・□ | 50kVA | 700 | 700 | 750 | 100 | 660 | 300 | 700 | 17 | 310kg | B | |
TT3 75-□・□ | 75kVA | 700 | 700 | 750 | 100 | 660 | 300 | 700 | 17 | 410kg | B |
Caution
1.Paint color (Munsell symbol) is 5Y7/1 semi-gloss.
2.Primary, secondary, and grounding cable drawers are located on the lower front side.
3.The front panel can be removed by screwing in four places.
