Power line Type2 SPD for Machine protection LT-C Series

LT-C12G801W, LT-C14G801W, LT-C32G801W, LT-C34G801W, LT-C35G102W

  • Machine protection SPD ; with status indicator
  • JISクラスⅠ・Ⅱ
  • JISクラスⅠ・Ⅱ
  • JISクラスⅠ・Ⅱ
  • JISクラスⅠ・Ⅱ
  • JISクラスⅠ・Ⅱ

Features

・Single / Multi Phase application with compact SPD module
・Full mode protection (Common, differential mode) with compact body
・Low protection level : Up ≦1.8kV

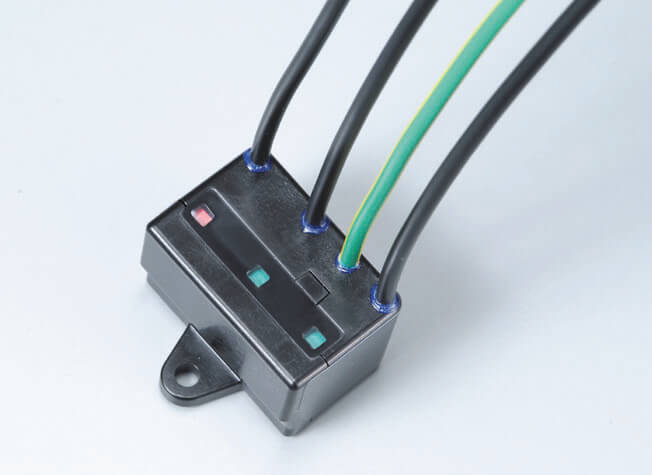

・Safe disconnector integrated with status indication
・EU RoHS Compliant with regulated substances.

Type

LT-C12G801W
LT-C14G801W
LT-C32G801W
LT-C34G801W
LT-C35G102W

Specification

Type LT-C12G801W LT-C14G801W LT-C32G801W LT-C34G801W LT-C35G102W
SPD according to EN 61643-11
/IEC 61643-11		 type2
Nominal a.c. voltage (Un) 250V
(50 / 60 Hz)		 L-E : 250V
L-L : 430V
(50 / 60 Hz)		 3ΦY : 250V
3ΦΔ : 250V
(50 / 60 Hz)		 3ΦY : 430V
3ΦΔ : 250V
(50 / 60 Hz)		 3ΦY : 500V
3ΦΔ : 290V
(50 / 60 Hz)
Max. continuous operating
a.c. voltage (Uc)		 275V
(50 / 60 Hz)		 L-E : 280V
L-L : 480V
(50 / 60 Hz)		 3ΦY : 275V
3ΦΔ : 275V
(50 / 60 Hz)		 3ΦY : 480V
3ΦΔ : 280V
(50 / 60 Hz)		 3ΦY : 550V
3ΦΔ : 320V
(50 / 60 Hz)
Nominal discharge current (8/20μs) (In) 2.5kA
Max.discharge current (8/20μs) (Imax) 5kA
Voltage protection level (Up) ≦1.5kV ≦1.8kV ≦1.5kV ≦1.8kV ≦2.0kV
Response time L-L : ≦3ns
Application system 1 phase 3 phase
mode of protection Common & Differential Mode
Operating temperature range (Tu) -20℃～ +70℃
Operating state / fault indication Green / red
Cross-sectional area AWG16×250mm
For mounting on M4 screw
Enclosure material thermoplastic, UL 94 V-0
Place of installation Indoor installations
Degree of protection IP 20
Certification UL1449 / CSA / TUV

Purpose

Protects equipment from lightning surges entering the power supply (for induced lightning).
Type2 SPD (surge arrestor) for power supply.
For use in machine tools and other equipment.

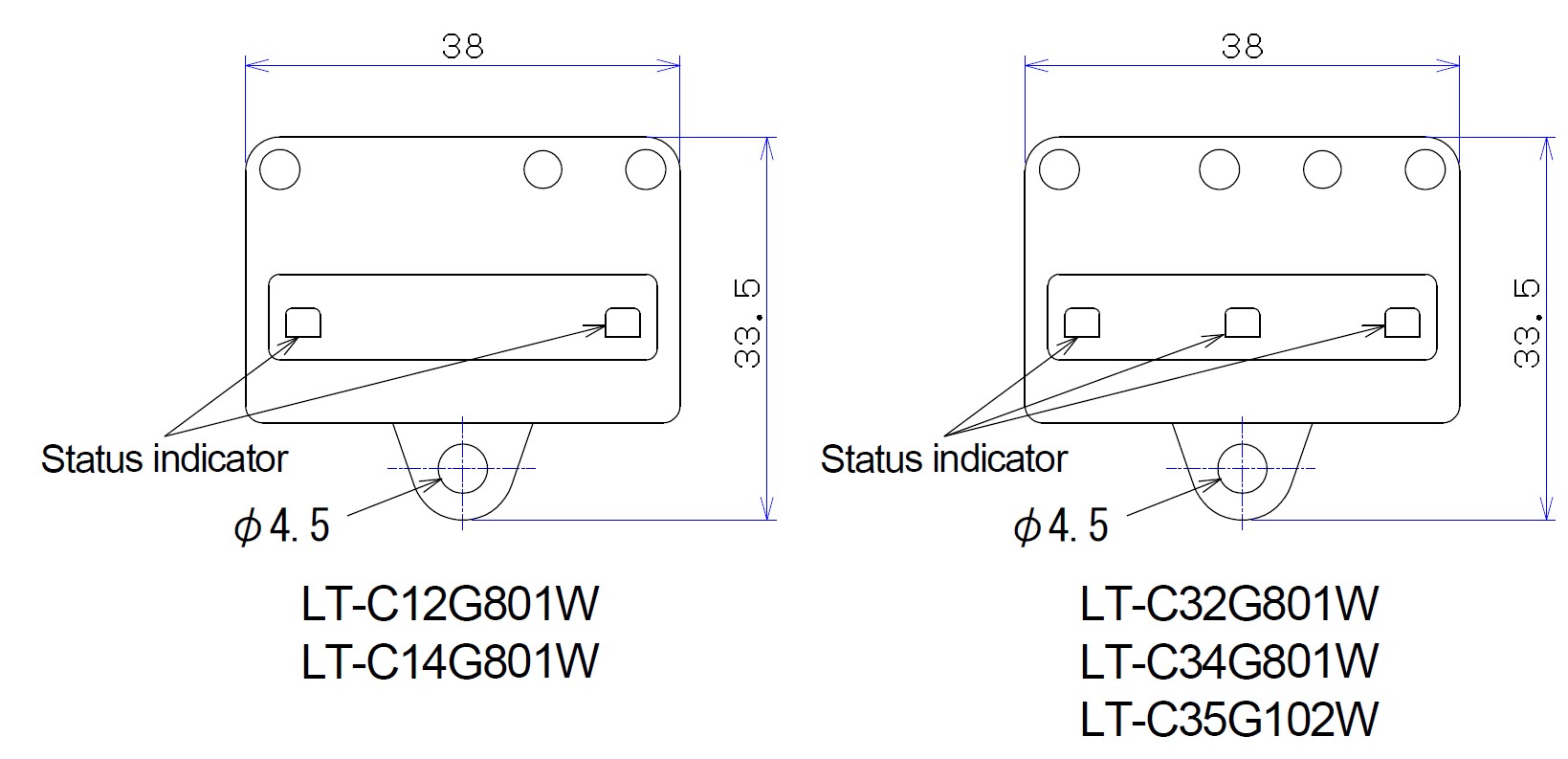

Dimension drawing

LT-C12G801W, LT-C14G801W, LT-C32G801W, LT-C34G801W, LT-C35G102W
LT-C12G801W, LT-C14G801W, LT-C32G801W, LT-C34G801W, LT-C35G102W
