Optional accessories (LSA Technology)

10‐pair Earth bar：5909 3 041-00, 6089 1 121-60, 6089 1 121-02, MF-22-01, MF-22-03, MF-30-05, MF-50-10－M, 6089 3 202-00, 6460 1 046-05, 6460 1 046-10, 6460 1 046-20

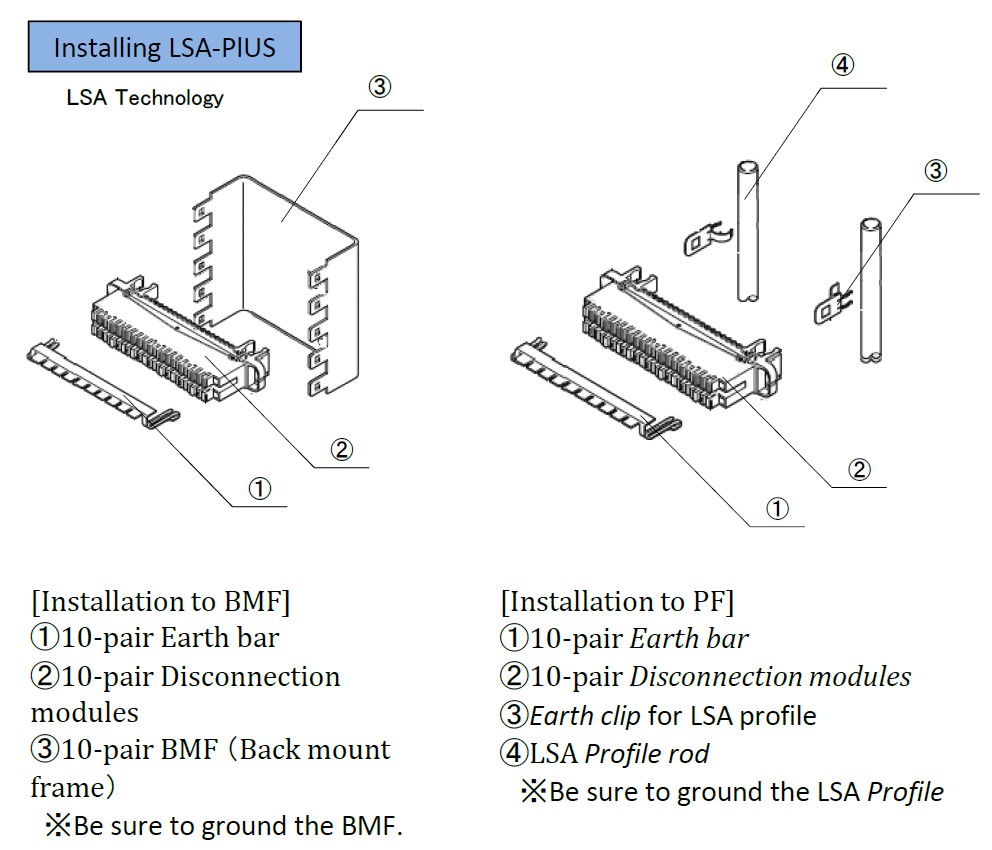

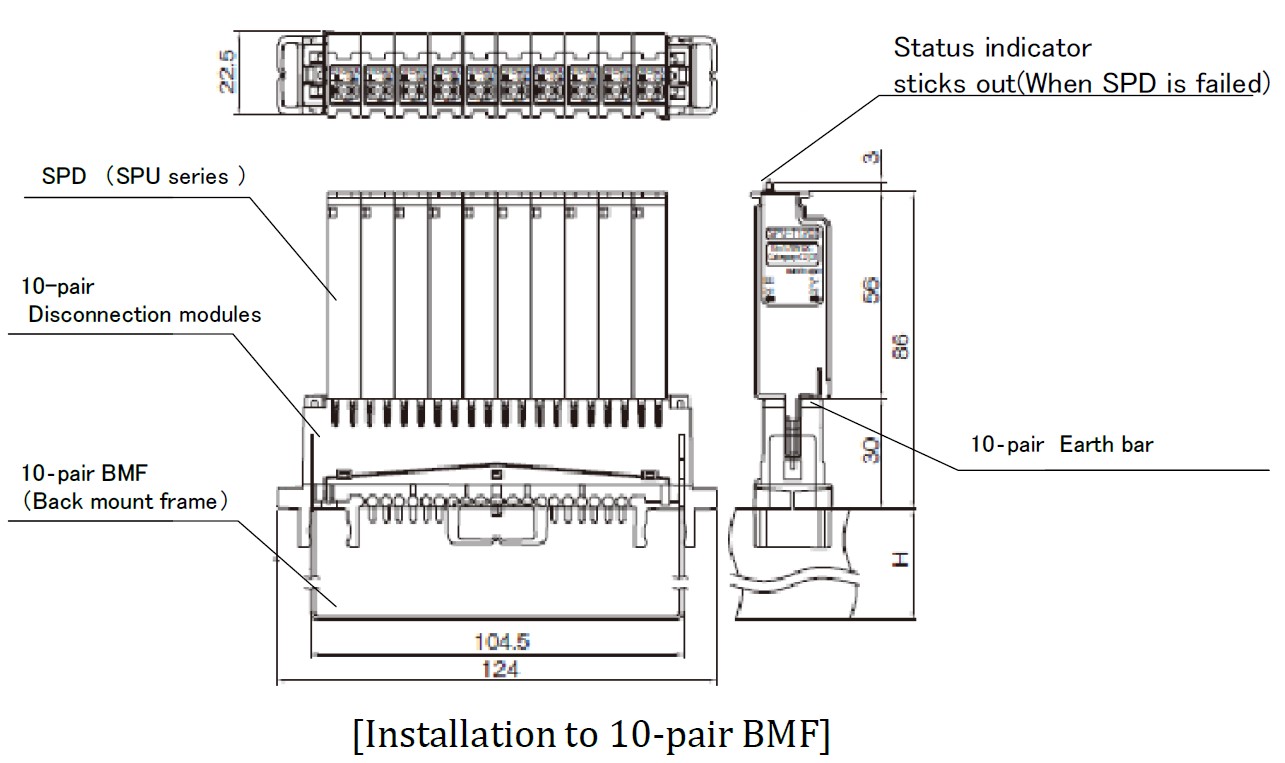

Installation to 10‐pair BMF

Specification（PDF ）
Manual
[LSA Technology]（PDF ）

Features

・A maximum of 10 SPDs can be installed
・For use in combination with SPU series

Type

10‐pair Earth bar：5909 3 041-00

10‐pair Disconnection modules：6089 1 121-60, 6089 1 121-02

10‐pair BMF 1Layer H:22mm ：MF-22-01
10‐pair BMF 3Layer H:22mm ：MF-22-03
10‐pair BMF 5Layer H:30mm ：MF-30-05
10‐pair BMF 10Layer H:50mm ：MF-50-10－M

Earth clip for LSA profile ：6089 3 202-00

LSA Profile rod：6460 1 046-05, 6460 1 046-10, 6460 1 046-20

Specification

Dimension drawing

Product can be associated with Optional accessories (LSA Technology)

Signal line SPD SPU series for LSA Technology

SPU-GV24J, SPU-T170J

・SPU-GV24J, SPU-T170J
・SPD with indicator, Easy Visual confirmation of operating state

Product details
